Product Description:

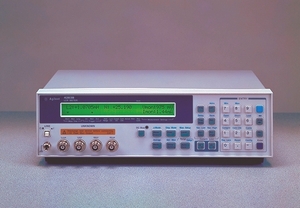

Agilent 4263B LCR Meter
5 Test Freqs:100Hz,120Hz,1kHz,
10 kHz,100 kHz
Impedance Parameters:Z,R,X,
Y,G,B,C,L,D,Q,Phase
Cable Length Settings:0,1,2,4
Error Correcn:Open,Short & Load
Measurement Time:25ms
Wide Capacitance Test Range
Cost-effective Low-end LCR Met
Save/Recall,Continous Memory
Performance Characteristics of the 4263B
| Form Factor |
Benchtop |
| Number of Digits (Max) |
5 digits |
| Min. Impedance Measurement |
1 mOhm |
| Max Impedance Measurement |
100 MOhm |
| Minimum Capacitance |
1 pF |
| Maximum Capacitance |
1 F |
| Min Inductance Measurement |
10 nH |
| Maximum Inductance |
100000 H |
| Minimum Frequency |
100 Hz |
| Maximum Frequency |
100 kHz |
| Minimum Voltage |
20 mV |
| Maximum Voltage |
1 Vrms |
| Accuracy |
0.1 % |
| Internal DC Bias |
2 V |
Programmability/Connectivity of the 4263B
| User Interface |
Proprietary
|
| Ports to Peripheral Devices |
HPIB
|
| Test Pattern Storage |
10 Patterns
|
4263B Compliance
| CE Compliance |
Not on file
|
| UL Compliance |
Not compliant
|
4263B Power Requirements
| Input Power |
Universal (Auto Sense and Switch) |
4263B Physical Dimensions
- Width: 320 mm(12.59 in)
- Height: 100 mm(3.93 in)
- Length: 300 mm(11.81 in)
- Weight: 4.5 kg(9.92 lb)
