Product Description:

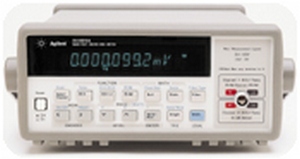

Agilent 34420A 34420A Nanovolt/micro-ohm meter, 7.5 digit
SPRT
RTD
Thermistor
Built-In 2 Channel Scanner
Built-In Resistance & Temperature
Performance Characteristics of the 34420A
| Form Factor |
Benchtop |
| Number of Digits (Max) |
7.5 digits |
| DC Volts Minimum Range |
1 mV |
| DC Volts Maximum Range |
100 V |
| DC Volts No. of Ranges |
6 QTY |
| DC Volts Range Steps |
1/10/100 |
| DC Volts Maximum Reading Rate |
250 pt/sec |
| DC Volts Maximum Sensitivity |
0.1 nV |
| DC Volts Basic 1 yr accuracy |
0.003 % |
| True Rms (?) |
No |
| Resistance Minimum Range |
1 Ohm |
| Resistance Maximum Range |
1 MOhm |
| Resistance No. of Ranges |
7 QTY |
| Resistance Range Steps |
1/10/100 |
| Resistance Maximum Sensitivity |
0.1 uOhm |
| Resistance Basic 1 yr accuracy |
0.006 % |
Programmability/Connectivity of the 34420A
| User Interface |
Proprietary
|
34420A Compliance
| CE Compliance |
Not on file
|
| UL Compliance |
Not compliant
|
34420A Power Requirements
| Input Power |
Universal (Auto Sense and Switch) |
34420A Physical Dimensions
- Width: 254.4 mm(10.01 in)
- Height: 103.6 mm(4.07 in)
- Length: 374 mm(14.72 in)
- Weight: 3 kg(6.61 lb)
34420A Standard Accessories
- HP 11062A /Kelvin Clip Set /Qty:1
- HP 34102A /4-ft thermal cable w/copper spade lugs /Qty:1
- HP 34103A /4-wire shorting plug /Qty:1
- 01 /4 Ft. Low Thermal Cable w/ Copper Spade /Qty:1
- 02 /4-Wire Shorting Plug, User Manual, /Qty:1
