Product Description:

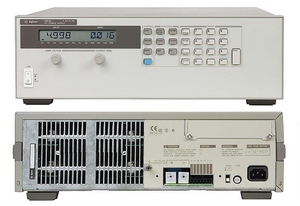

Agilent 6552A DC power supply, 0-20 V, 0-25 A, 500 W. Manually controlled.
Performance Characteristics of the 6552A
| Form Factor |
Benchtop |
| No. of Outputs |
1 o/p |
| Range programming modes |
Auto |
| Output 1 Max. power |
500 Watts |
| Output 1/Range 1 Max. Current |
25 A (0 V to 20 V) |
| Voltage Ripple and Noise |
300 uV |
| Current Ripple and Noise |
10 mA |
| Load Regulation, Voltage |
2 mV |
| Load Regulation, Current |
1 mA |
| Line Regulation, Voltage |
.5 mV |
| Line Regulation, Current |
1 mA |
| Transient Response Time |
100 us |
| Remote Sensing Measurement |
Yes |
| Multiple Unit Combinations |
Parallel,Series |
| Overvoltage Protection |
Yes |
| Overcurrent Protection |
Yes |
| Over-temperature Protection |
Yes |
| Local Lockout |
Yes |
| Calibration security |
Jumper |
| Self test |
Yes |
Programmability/Connectivity of the 6552A
| User Interface |
Proprietary
|
| Test Pattern Storage |
5 Patterns
|
6552A Compliance
| CE Compliance |
Compliant
|
| UL Compliance |
Compliant
|
6552A Power Requirements
| Input Power |
USA (110V/60Hz) |
6552A Physical Dimensions
- Width: 425.5 mm(16.75 in)
- Height: 132.6 mm(5.22 in)
- Length: 497.8 mm(19.59 in)
- Weight: 25 kg(55.11 lb)
