Product Description:

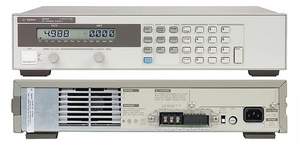

Agilent 6545A DC power supply, 0-120 V, 0-1.5 A, 180 W. Manually controlled.
Performance Characteristics of the 6545A
| Form Factor |
Benchtop |
| No. of Outputs |
1 o/p |
| Range programming modes |
Auto |
| Output 1 Max. power |
200 Watts |
| Output 1/Range 1 Max. Current |
1.5 A (0 V to 120 V) |
| Voltage Programming Accy Output1/Range1 |
0.00085 % |
| Current Programming Accy Output1/Range1 |
0.011 % |
| Voltage Ripple and Noise |
700 uV |
| Current Ripple and Noise |
1 mA |
| Load Regulation, Voltage |
5 mV |
| Load Regulation, Current |
0.25 mA |
| Line Regulation, Voltage |
2 mV |
| Line Regulation, Current |
0.25 mA |
| Transient Response Time |
100 us |
| Programming Response Time |
15 ms |
| Remote Sensing Measurement |
Yes |
| Multiple Unit Combinations |
Parallel,Series |
| Overvoltage Protection |
Yes |
| Overcurrent Protection |
Yes |
| Over-temperature Protection |
Yes |
| Local Lockout |
Yes |
| Calibration security |
Jumper |
| Self test |
Yes |
Programmability/Connectivity of the 6545A
| User Interface |
Proprietary
|
| Test Pattern Storage |
5 Patterns
|
6545A Compliance
| CE Compliance |
Compliant
|
| UL Compliance |
Compliant
|
6545A Power Requirements
| Input Power |
USA (110V/60Hz) |
6545A Physical Dimensions
- Width: 425.5 mm(16.75 in)
- Height: 88.1 mm(3.46 in)
- Length: 439 mm(17.28 in)
- Weight: 14.2 kg(31.3 lb)
