Keysight Technologies Inc. 87106D Switch, SP6T, DC-40 GHz, Terminated

87106D - Keysight Technologies Inc. Switch, SP6T, DC-40 GHz, Terminated

Warranty: 0 Stnd
Shipping: FOB Origin
Ships in: 6 Weeks
Country of Origin: Malaysia
SIN:
Part No:
GSA Schedule: Exp.:

U.S. Government, Military
and Contractors only
Price: Do you qualify for GSA Schedule?

Description

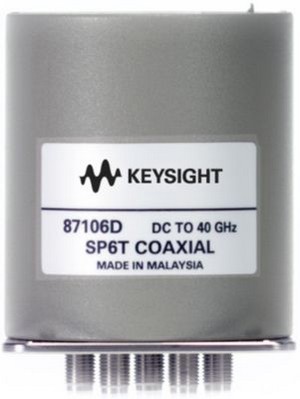

Keysight Technologies Inc. Switch, SP6T, DC-40 GHz, Terminated

The Keysight 87106D multiport switch improves signal accuracy in RF and microwave signal routing and testing applications. This high performance electromechanical switch provides unmatched isolation and a 0.03 dB insertion loss repeatability, which is warranted for the 5-million life cycle of the switch. The 87106D¿s low insertion loss repeatability reduces sources of random errors in the measurement path, which improves measurement accuracy. The repeatability and reliability of this switch guarantee measurement accuracy and can cut the cost of ownership by reducing calibration cycles and increasing test system up time. Highly repeatable switching capability is made possible through Keysight's rigorous design and tight manufacturing specifications.

Ideal for manufacturing test engineers working on system integration, the Keysight 87106D terminated multiport switch provides a reliable solution for signal monitoring and routing applications.

Note: Option 024 and 161 are default options unless specified otherwise.


Features

  • SP6T configuration, terminated
  • Electronic position indicator
  • Current interrupt capability
  • Magnetic latching

Superior RF Performance

  • Unmatched isolation, minimum 65 dB at 40 GHz
  • Guaranteed 0.03 dB insertion loss repeatability for 5 million cycles
  • Typical operating life, 10 million cycles

Additional Details

Type: New commercial
Calibration: New
